RINEX

Direct Link to current RINEX Data files.

General Information

Data Storage

One hour RINEX files collected at a 5 second epoch rate are available online for 90 days, after which they will be archived off-line. Archived RINEX files older than one month may be obtained by contacting ORGN Support.

If an ORGN partner is already providing RINEX files online for their site; i.e., the partner site is a National Geodetic Survey Coop CORS site, we will not duplicate those RINEX files on the ORGN website; however, we will provide a link to the partner's RINEX data by clicking on the station on our ORGN NAD83 (2011) epoch 2010.00 Coordinates list or The Geometronics Toolkit.



Picture of a rinex-data sheet



RINEX data is made available at no charge from ORGN.

The nominal epoch rate for ORGN RINEX files is 5 seconds; however, users may request RINEX files with a faster epoch rate on a project-by-project basis, for example, an aerial photography project using airborne GNSS control. Contact ORGN Support in advance of your project if you have such a need.

File Naming

The zipped RINEX files posted on the ORGN website contain both an observation RINEX file and a navigation RINEX file.

The file naming convention for the zipped file is: ssssdddh.rnx.zip, where “ssss” is used to identify the site name, “ddd” is the Julian day of the year, “h” is the hour identifier in UTC time (see chart below), “rnx” shows the type of files in the zipped file are RINEX, and "zip" is the type of compression used.

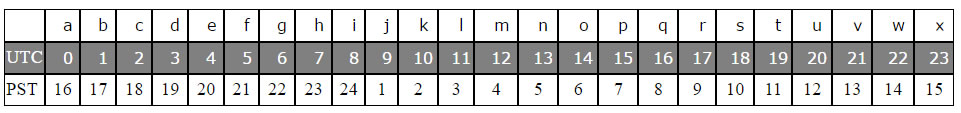

Do not be confused by the times listed on the left of the RINEX data page. They are the times that each file was posted onto the FTP server. The 8th character in the file name indicates the hour (UTC) that each hourly file was started, per the following chart:

RINEX code chart

For example, pdxa041p.rnx.zip is a zipped one hour RINEX file from station PDXA which contains data starting at 15:00 UTC on Julian Day 041 (February 10).

The Julian Day is the numerical day of the year starting with Julian Day 001 on January 1 and ending with Julian Day 365 on December 31 in a regular year (day 366 if a leap year). There are many interactive GNSS calendars available on the internet that give both the Julian Day and GPS week of a particular calendar date.

Each zipped RINEX file contains both an observation file and a navigation file from the site and a similar naming convention is used for both unzipped files: ssssdddh.yyt where “ssss” is used to identify the site name, “ddd” is the Julian day of the year, “h” is the hour identifier in UTC (see chart above), “yy” is the year, “t” is the file type (o= observation, n=navigation). For example, pdxa041p.07o is the observation file and pdxa041p.07n is the navigation file zipped into the above zipped RINEX file pdxa041p.rnx.zip.

Resources

RINEX Data Request Form - Use this form to request custom RINEX data files from the ORGN.

ORGN NAD83 (2011) epoch 2010.00 Coordinates is a list of ORGN site coordinates with links to individual station web pages and to the RINEX data of ORGN partners.

RINEX Data Index - A direct link to the zipped downloadable ORGN RINEX files organized in folders according to the following hierarchy: site, year, month, then day of month.

PBO RINEX Data Index - A direct link to the zipped downloadable Plate Boundary Observatory 24 hour RINEX files organized in folders according to the following hierarchy: year, Julian day, then site.
