Waterway Markers are
devices, such as buoys or signs, designed to be placed in, or near water to
convey an official message to a boat operator. “Regulatory markers” alert boat
operators to restrictions set in law including, but not limited to, boat exclusion
areas and motor, horsepower, speed, or wake restrictions. “Information
markers” convey information to boat operators other than regulatory matters,
such as warnings of dangers or obstructions to navigation or other information
of an official nature which will contribute to the health, safety, and
well-being of boaters.
A political subdivision
or person must not mark the waters of this state in any manner in conflict with
the markings prescribed by the Marine Board. ORS 830.110(13)
Waterway markers may be owned
and managed in several different ways:
- Aids to navigation on federally navigable waterways are
managed by the US Coast Guard. Impoundment managed by a
federal agency (US Army Corps of Engineers, US Forest Service, Bureau of
Reclamation) may be marked by those agencies.
- The Marine Board purchases buoys and signs to mark many
of the regulatory areas established in state law (such as slow-no wake
zones, 10 mph limit, motors prohibited). These markers are placed and
maintained by the county marine patrol programs under contract with the
Marine Board. The county marine patrol programs also place hazard markers
as needed.
- Additional markers, such as slow-no wake signs and
buoys around public boat launch ramps, are provided by the Marine Board as
part of boating facility grants, and are the responsibility of the
facility manager to maintain.
- If the Marine Board establishes a special local
regulation in rule, the governing body (or individual) that requested the
rule is responsible for establishing and maintaining the markers as
prescribed by the Marine Board. ORS 830.175(2)
- Local governments, other state agencies, and
individuals can own, place, and maintain their own regulatory or
information markers as prescribed by the Marine Board. See "apply for
a waterway marker" below.
Regulatory markers established before July 1,
2015, including markers deployed year-round and markers deployed seasonally,
when supported by statute or rule, are exempt from the permit requirements of
OAR 250-010-0215 to 250-010-0235 until the equipment is replaced. Existing
regulatory markers that are not supported by statute or rule or that are an
unreasonable hazard to navigation are subject to the removal provisions of OAR
250-010-0235(4).
For markers established after July 1, 2015:
political subdivisions and individuals can apply for permission to
place regulatory and information markers in areas not marked
by the Marine Board. Regulatory markers can only be placed in areas where
regulations are already established. Informational markers can be used to
convey information to boat operators that is not an enforceable law such as
"marina ahead," "fuel dock," or "caution -swimmers."
***Please note***
A Marine Board waterway marker permit does not relieve the applicant from
obtaining other federal, state or local permits, licenses, or approval which
may be required.
Waterway markers placed
on the waters of the state after July 1, 2015 must conform to the following
standards.

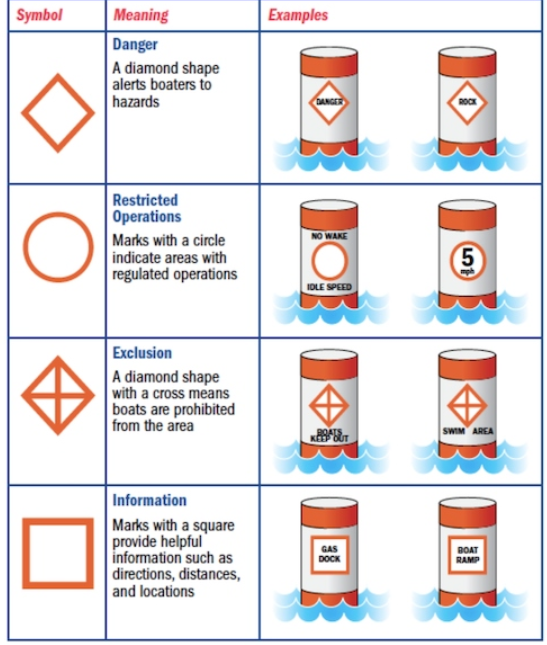

Colors and Shapes
Regulatory markers shall
contain the symbols and messages as follows:
- A diamond shape of international orange with a cross of
the same color within it against a white center shall be used to indicate
a water zone where vessels may not enter. Any words or well-known
abbreviations must be in black letters above and/or below the shape on
white background.
Common messages include: Exclusion Zone, No Entry, Swim Area, and No
Boats.
- A circle of international orange with white center
shall be used to indicate water zone within which a control or restriction
is imposed upon operation of vessels and/or use of the zoned area. The
nature of the control shall be indicated by words, numerals, or well-known
abbreviations in black letters inside the circular shape, or above and/or
below it.
Common messages include: Slow No Wake, speed restrictions, and motor type
restrictions.
- A diamond shape of international orange with white
center shall be used to indicate danger from natural or man-made hazard.
The nature of the hazard may be indicated by words or well-known
abbreviations in black letters inside the diamond shape, or above and/or
below it on white background.
Common messages include: Danger, Rocks, and Low Water.
- A rectangular shape of international orange with white
center may be used to convey other information of an official nature which
will contribute to the health, safety, and well-being of boaters using the
state's waters. The message will be presented within the shape in black
letters.
Common messages include: Marina Entrance, Wildlife Refuge, services, and
other general information.

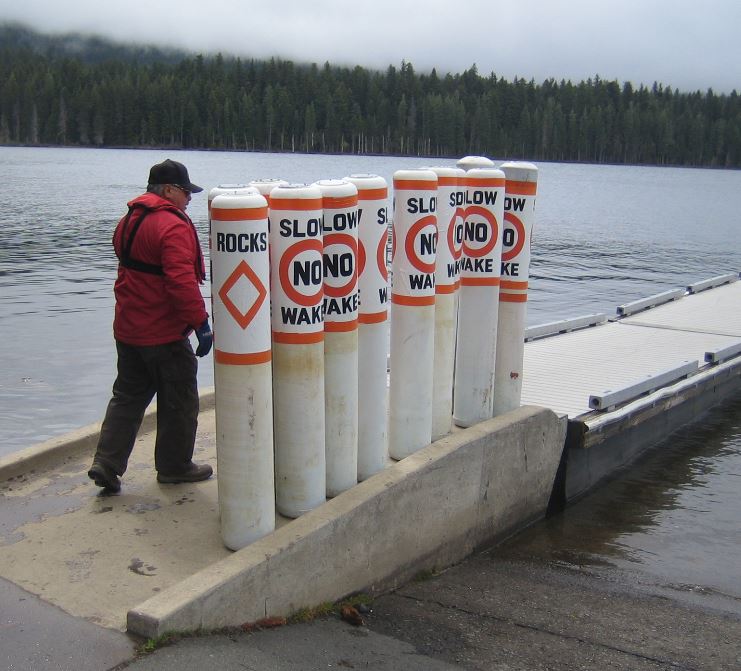

Buoys
Buoys must be white with
bands of international orange placed completely around the buoy circumference.
One band shall be at the top of the buoy body, with a second band placed just
above the water line of the buoy so that both orange bands are clearly visible
to approaching vessels. The display area of the buoy body between the two bands
shall be white. The symbols and messages described above must be placed in the
display area.
Buoys:
- Must be a commercial available design approved by the
Marine Board;
- Must be self-righting;
- Must have a durable hard plastic shell;
- Must have internal foam floatation and a ballast
system.
Calm water buoys must
conform to the following minimum dimensions:
- The minimum height above the waterline must be
34inches;
- The minimum diameter must be 8 inches.
Examples:
Fast water buoys must
conform to the following minimum dimensions:
- The minimum height above the waterline must be 36
inches;
- The minimum can diameter must be 10 inches;
- The minimum float collar base diameter must be 21inches
Examples: CAL 427 River Buoy, Rolyan B1428 SW, Taylor Made Sur-Mark
Regulatory Buoy 97897
Signs
Signs must be rectangular in shape with a white background and have the symbols
and messages described above placed in the center of the display area. Signs
shall be made of materials which will retain, despite weather and other
exposure, the characteristics essential to their basic significance, such as
color, shape, legibility, and position. Acceptable materials include:
- 0.080” aluminum;
- Fluted twin wall corrugated plastic sheet; or
- Other materials as approved by request to the Marine
Board.
The size of a display area shall be as required by circumstances, except
no display area shall be smaller than 24 inches in height by 18 inches in
width.
