RINEX



One-hour RINEX files, collected at 5-second epoch rate, are available online for 90 days.

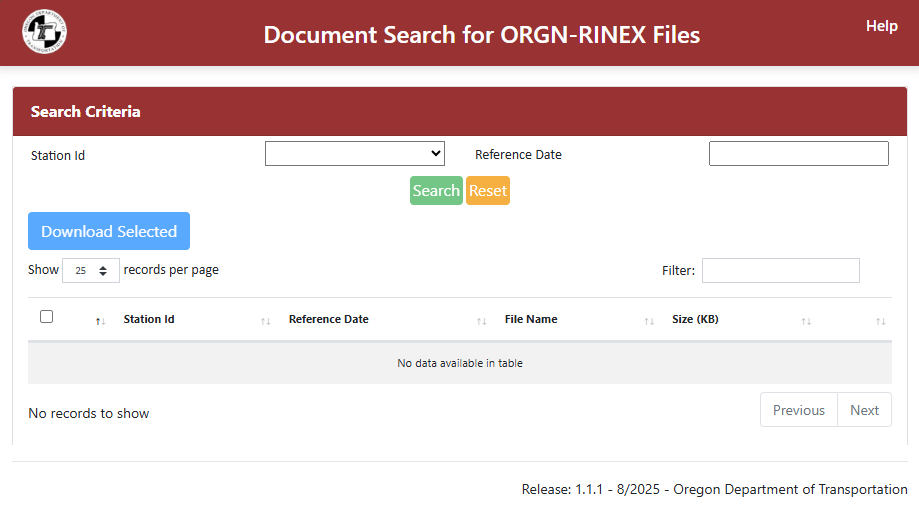

View RINEX Data

RINEX Data from Partners

If an ORGN partner already provides RINEX files for its site, the ORGN does not duplicate that content on the ORGN site.

Links are provided to those partner sites from the ORGN NAD83 (2011) Epoch 2010.00 Coordinates List or from the Geometronics Toolkit.

Need Older Files?

RINEX files are archived offline, and may be obtained by request. Contact the ORGN for archived content.

Need a Faster Epoch Rate?

Users may request RINEX files with a faster epoch rate on a project-by-project basis; for example, an aerial photography project using airborne GNSS control. Requests must be made in advance.

Many stations collect data at a 1-second epoch rate. All data collected is archived.

See the Resources tab below for more information.



Zip Files

The ​file naming convention for these files is ssssdddh.rnx.zip, where:

  • "SSSS" - identifies the site name
  • "DDD" - identifies the Julian date of the year
  • ​"H" - identifies the hour in UTC time​ that each file was started
  • "RNX" - shows the file type as RINEX
  • "ZIP" - indicates the compression method


For example, the PDXA station data is zipped in a one hour file from Feb. 10, 2007 starting at 15:00 UTC or 7:00 am PST:

  • Zipped file - pdxa041p.mx.zip

Individual Files

Included in each zip file is an observation file and a navigation file, each with a naming convention similar to the zip file structure noted above.

The naming convention for these files is ssssdddh.yyt, where:

  • "SSSS" - identifies the site name
  • "DDD" - identifies the Julian date of the year
  • ​"H" - identifies the hour in UTC time​
  • "YY" - indicates the year
  • "T" - identifies the file type, "o" for observation and "n" for navigation

For example, the PDXA station from Feb. 10, 2007 starting at 15:00 UTC, or 7:00 am PST:

  • Observation file - pdxa041p.07o
  • Navigation file - pdxa041p.07n

Julian Date Calendar

Julian dates represent each day of the year as a numerical day, continuously counted from Jan. 1 (Julian day 001) through Dec. 31 (Julian day 365).

UTC Time

Coordinated Universal Time Conversion Chart


​RINEX Data Request Form - Use this form to request custom RINEX data files from the ORGN

ORGN NAD83 (2011) epoch 2010.00 Coordinates - List of ORGN site coordinates with links to individual station web pages, and to the RINEX data of ORGN partners

PBO RINEX Data Index - Link to the Plate Boundary Observatory 24-hour RINEX zip files, organized as follows: Year, Julian Day, Site.

PBO High-Rate RINEX Data - Link to the Plate Boundary Observatory 24-hour high-rate (1Hz to 10Hz) RINEX files, organized as follows: Year, Julian Day, Site.

CWU Archived RINEX Data - Link to the Pacific Northwest Geodetic Array compact RINEX zip files.

Compact RINEX to RINEX Conversion Document
