Station - HALF

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	HALF
Location:	HALF - Halfway
PID:	221

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 52' 20.58887"N
Longitude:	117° 05' 59.32838"W
Ellip. Hgt.:	783.935m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Halfway VFW Post 7847, 45875 Cornucopia Hwy, Halfway OR 97834
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Trimble Zephyr 3 Geodetic (TRM115000.00,NONE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - BEND

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	BEND
Location:	BEND - City of Bend
PID:

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 03'25.75638"N
Longitude:	121° 18' 54.61161"W
Ellip. Hgt.:	1096.256m
Constellations Tracked:	GPS & GLONASS
Location Address:	710 NW Wall St. Bend, OR 97701
Organization:	City of Bend

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	Leica / GRX1200GG Pro
Antenna:	Leica AT504GG
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - BNDM

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	BNDM
Location:	BNDM - Bend Maintenance Station
PID:	205

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 05' 21.80676"N
Longitude:	121° 18' 27.07846"W
Ellip. Hgt.:	1070.732m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	63055 N Highway 97 Bend OR, 97703
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	Leica GR10
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - CHEM

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	CHEM
Location:	CHEM - Chemult
PID:	208

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43°13’27.68453” N
Longitude:	121°47’08.93965” W
Ellip. Hgt.:	1440.409m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	11031 N HWY 97, Chemult, OR 97731
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - MDRS

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	MDRS
Location:	MDRS - Madras
PID:	234

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 39' 50.49222"N
Longitude:	121° 07' 49.44862"W
Ellip. Hgt.:	736.322m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	201 NE Cherry Lane, Madras, OR 97741
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	Septentrio SEPCHOKE B3E6 SPKE
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - COND

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	COND
Location:	COND - Condon
PID:	210

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 14' 6.44799"N
Longitude:	120° 10' 52.90248"W
Ellip. Hgt.:	865.861m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	406 E Frazer Condon, OR 97823
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - CTPT

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	CTPT
Location:	CTPT - Central Point
PID:	212

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 22' 36.08452"N
Longitude:	122° 53' 38.19506"W
Ellip. Hgt.:	370.968m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	4141 Hamrick Rd Central Point, OR 9750
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Leica AR25 REV 4.00 (LEIAR25.R4 LEIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ENTR

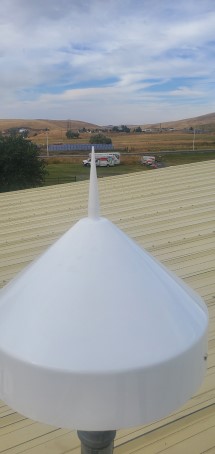

Looking North

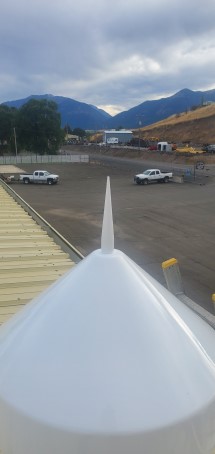

Looking South

Looking West

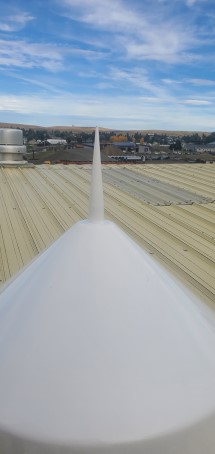

Looking East

Station Information
Site ID:	ENTR
Location:	ENTR - Enterprise
PID:	214

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 25' 52.50580"N
Longitude:	117° 17' 17.03685"W
Ellip. Hgt.:	1127.06m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	715 Golf Course Rd. Enterprise, OR 97828
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - BLY1

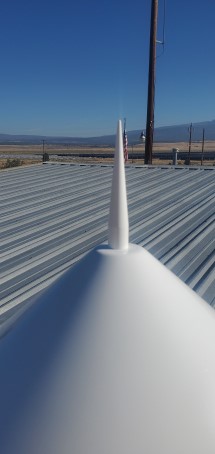

Looking North

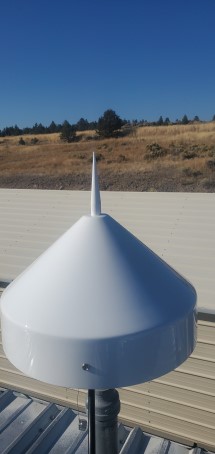

Looking South

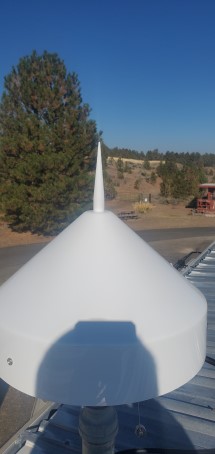

Looking West

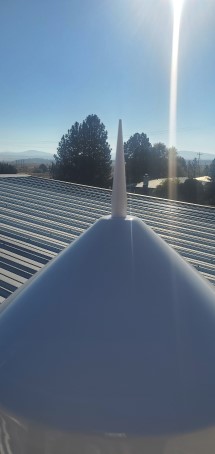

Looking East

Station Information
Site ID:	BLY1
Location:	BLY1 - Bly Fire Station
PID:	204

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 24' 24.62688"N
Longitude:	121° 02' 56.57581"W
Ellip. Hgt.:	1313.889m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Bly Rural Fire Protection District 60800 Highway 140 E. Bly, OR 97622
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ARLN

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	ARLN
Location:	ARLN - Arlington
PID:	202

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 42' 29.52451” N
Longitude:	120° 10' 59.71079” W
Ellip. Hgt.:	120.806m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	1520 Highway 19, Arlington, OR 97812
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ELG2

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	ELG2
Location:	ELG2 - Elgin
PID:	341

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 33' 53.49102"N
Longitude:	117° 55' 42.27508"W
Ellip. Hgt.:	816.495
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	1800 Division St., Elgin, OR 97827
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	Septentrio / PolaRx5
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ASHL

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	ASHL
Location:	ASHL - Ashland
PID:

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 10' 50.47282"N
Longitude:	122° 40' 12.55156"W
Ellip. Hgt.:	609.156m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	706 Tolman Creek Rd. Ashland, OR 97520
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Leica AR25 REV 4.00 (LEIAR25.R4 LEIT )
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - GRAS

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	GRAS
Location:	GRAS - Grass Valley
PID:	219

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 21' 51.87470"N
Longitude:	120° 47' 14.62046"W
Ellip. Hgt.:	677.858m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	408 NW 3rd, Grass Valley, OR 97029
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - FWBD

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	FWBD
Location:	FWBD - Farewell Bend
PID:	215

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 17' 30.78068"N
Longitude:	117° 13' 17.85337"W
Ellip. Hgt.:	631.941m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Farewell Bend POE MCEO 5920 Highway 30 Huntington, OR 97907-5000
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - GTPS

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	GTPS
Location:	GTPS - Grants Pass
PID:	220

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 26' 04.16504"N
Longitude:	123° 17' 50.51083"W
Ellip. Hgt.:	279.017m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	345 NE Agness Ave, Grants Pass, OR 97526
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic ((TRM 115000.00+s SCIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - JUNT

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	JUNT
Location:	JUNT - Juntura
PID:	226

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 44' 37.73915"N
Longitude:	118° 04' 42.47820"W
Ellip. Hgt.:	891.118m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	5825 4th Street, Juntura, OR 97911
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - KFRC

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	KFRC
Location:	KFRC - Klamath Falls – Rhine-Cross Group
PID:	225

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 13' 27.00228"N
Longitude:	121° 47' 01.91201"W
Ellip. Hgt.:	1240.586m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	112N 5th St. Suite 200 Klamath Falls, OR 97601
Organization:	Private

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	Alloy
Antenna:	Trimble Zephyr 3 Geodetic
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - LKVW

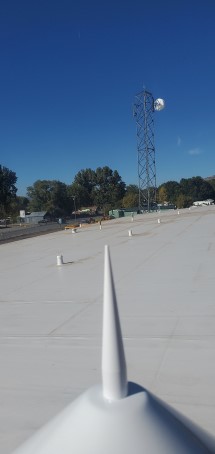

Looking North

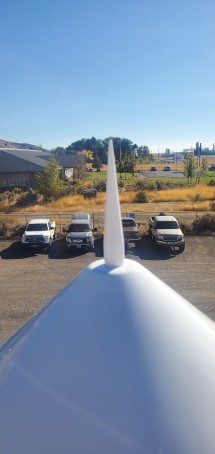

Looking South

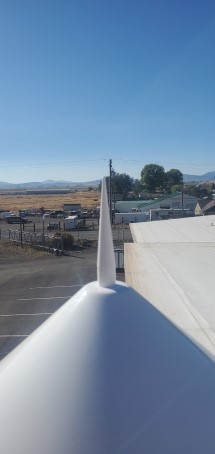

Looking West

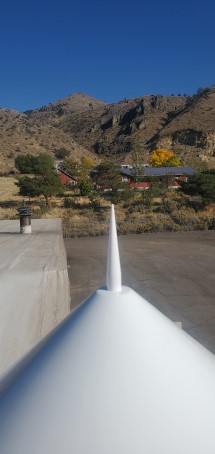

Looking East

Station Information
Site ID:	LKVW
Location:	LKVW - Lakeview
PID:	340

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 10’ 19.53243”N
Longitude:	120° 20’ 47.99366”W
Ellip. Hgt.:	1433.482m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	1269 S G St Lakeview, OR 97630
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - OAKR

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	OAKR
Location:	OAKR - Oakridge
PID:	236

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 44' 18.00445"N
Longitude:	122° 26' 40.37727"W
Ellip. Hgt.:	376.282m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Industrial Parkway, Oakridge, OR 97463
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	Alloy
Antenna:	Trimble Zephyr 3 Geodetic
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - MTCL

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	MTCL
Location:	MTCL - Mitchell
PID:	282

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 33' 54.73196" N
Longitude:	120° 08' 47.57927" W
Ellip. Hgt.:	878.278m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	340 SE High St Mitchell, OR 97750
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	Septentrio / PolaRx5
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - PLNA

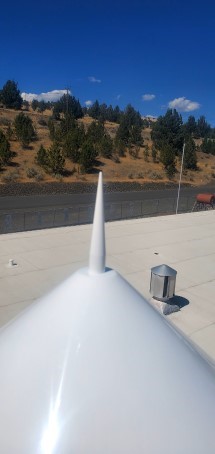

Looking North

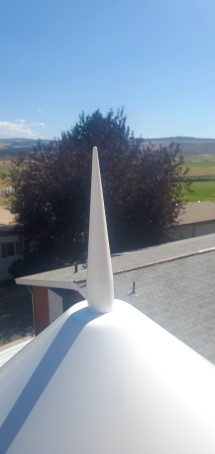

Looking South

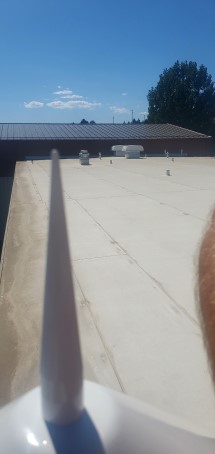

Looking West

Looking East

Station Information
Site ID:	PLNA
Location:	PLNA - Paulina
PID:	284

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 07' 55.42122"N
Longitude:	119° 58' 00.38154"W
Ellip. Hgt.:	1110.672m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	70050 SE Paulina City Rd. Paulina, OR 97751
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - PKDL

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	PKDL
Location:	PKDL - Parkdale
PID:	277

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 31' 05.87687"N
Longitude:	121° 33' 49.18704"W
Ellip. Hgt.:	512.115m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	7285 Highway 35 Parkdale, OR 97041
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	Alloy
Antenna:	Trimble Zephyr 3 Geodetic
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - PNVL

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	PNVL
Location:	PNVL - Prineville
PID:	280

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 18' 46.50562"N
Longitude:	120° 50' 47.40832"W
Ellip. Hgt.:	873.67m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	1306 N Main St. Prineville, OR 97754
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	Alloy
Antenna:	Trimble Zephyr 3 Geodetic
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - PDXA

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	PDXA
Location:	PDXA - Portland Airport
PID:	276

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 35' 48.72763"N
Longitude:	122° 36' 33.17793"W
Ellip. Hgt.:	-4.672m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	5250 NE Marine Drive Portland, OR 97218
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NETR9
Antenna:	TRM115000.00 (TRM115000.00 NONE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ONAB

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	ONAB
Location:	ONAB - Ona Beach
PID:	239

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 30' 52.26605"N
Longitude:	124° 04' 28.19826"W
Ellip. Hgt.:	17.896m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	12735 NW Pacific Coast Highway, Seal Rock, OR 97376-9632
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic (TRM 115000.00+s SCIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - REED

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	REED
Location:	REED - Reedsport
PID:	285

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 42' 03.61163" N
Longitude:	124° 06' 28.01412" W
Ellip. Hgt.:	-13.784 m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	1200 Oregon Coast Highway, Reedsport, OR 97467
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic ((TRM 115000.00+s SCIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - PSPT

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	PSPT
Location:	PSPT - Prospect
PID:	283

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 45' 17.42686"N
Longitude:	122° 29' 22.16391"W
Ellip. Hgt.:	773.691m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	120 Mill Creek Dr Prospect, OR 97536
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	Alloy
Antenna:	Trimble Zephyr 3 Geodetic
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - RSBG

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	RSBG
Location:	RSBG - Roseburg
PID:	216

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 14' 06.04964"N
Longitude:	123° 21' 33.72755"W
Ellip. Hgt.:	135.628m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	3500 NW Stewart Pkwy Roseburg, OR 97470
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic (TRM 115000.00+s SCIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - SEAS

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	SEAS
Location:	SEAS - Seaside
PID:	288

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 59' 03.19738"N
Longitude:	123° 55' 20.65955"W
Ellip. Hgt.:	-11.683m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	836 Avenue S, Seaside, OR 97138
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic (TRM 115000.00+s SCIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - TDLS

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	TDLS
Location:	TDLS - The Dalles
PID:	293

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 36' 27.74418"N
Longitude:	121° 07' 46.16393"W
Ellip. Hgt.:	26.906m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	3313 Bret Clodfelter Way, The Dalles, OR 97058
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Leica AR25 (LEIAR25.R4 LEIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - WAMC

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	WAMC
Location:	WAMC - Wamic
PID:	299

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 13' 25.77186"N
Longitude:	121° 16' 25.01318"W
Ellip. Hgt.:	528.518m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	46863 Wamic Market Rd., Wamic, OR 97063
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems / Septentrio
Receiver Model:	PolaRx5
Antenna:	Leica AR25 REV 4.00 (LEIAR25.R4 LEIT )
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - TILL

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	TILL
Location:	TILL - Tillamook
PID:	294

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 27' 18.45162"N
Longitude:	123° 49' 50.70193"W
Ellip. Hgt.:	-4.263m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	308 Evergreen Dr, Tillamook, OR 97141
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic (TRM 115000.00 None)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - YONC

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	YONC
Location:	YONC - Yoncalla
PID:	301

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 38' 02.78664" N
Longitude:	123° 17' 53.82401" W
Ellip. Hgt.:	87.302m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	5443 Eagle Valley Road, Yoncalla, OR 97499
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Trimble Zephyr 3 Geodetic with radome (TRM 115000.00+s SCIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - UKIA

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	UKIA
Location:	UKIA - Ukiah
PID:	296

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 07' 58.05563"N
Longitude:	118° 56' 11.63665"W
Ellip. Hgt.:	1009.478m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	306 W State St., Ukiah, OR 97880
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - WMSG

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	WMSG
Location:	WMSG - North Warm Springs Junction
PID:	300

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 07' 52.53685"N
Longitude:	121° 35' 50.13113"W
Ellip. Hgt.:	1048.427m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	71739 Highway 216, Maupin, OR 97037-9117
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - LAPN

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	LAPN
Location:	LAPN - La Pine
PID:	230

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 39' 52.55140”N
Longitude:	121° 30' 21.55145”W
Ellip. Hgt.:	1279.363m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	51340 Hwy 97, La Pine, OR 97739
Organization:	Deschutes County Road Department

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	Septentrio / PolaRx5
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 Log Files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - LPSB

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	LPSB
Location:	LPSB - Eugene
PID:	228

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44°03’ 04.40872”N
Longitude:	123°05’ 24.24803”W
Ellip. Hgt.:	118.086m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Lane Public Service Building - 125 E 8th Ave, Eugene, OR 97401
Organization:	Lane County

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NETR9
Antenna:	Trimble Zephyr 3 Geodetic
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 Log Files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - NWBG

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	NWBG
Location:	NWBG - Newberg
PID:	235

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 18' 00.17181" N
Longitude:	122° 58' 31.85036" W
Ellip. Hgt.:	42.938m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	414 1st Street, Newberg, Oregon 97132
Organization:	City of Newberg

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NETR9
Antenna:	TRM 115000.00 (TRM115000.00 NONE)
Elevation Mask:	0 degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	24 hour

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - CRAN

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	CRAN
Location:	CRAN - Crane
PID:	213

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 24' 56.80089" N
Longitude:	118° 34' 29.70724" W
Ellip. Hgt.:	1248.752m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Leland Avenue, Crane Oregon 97732
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Trimble (Zephyr 3 Geodetic)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - BASQ

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	BASQ
Location:	BASQ - Basque
PID:	270

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42°24’41.76349” N
Longitude:	117°51’46.84949” W
Ellip. Hgt.:	1313.879m
Constellations Tracked:	GPS & GLONASS
Location Address:	6725 U.S. 95, Jordan Valley, OR, 97910
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	GRX1200GG Pro
Antenna:	AT504GG (LEIAT504GG LEIS)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - LFLO

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	LFLO
Location:	LFLO - Florence
PID:	227

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 59' 00.96696”N
Longitude:	124° 06' 27.69035”W
Ellip. Hgt.:	6.021m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	1300 20th ST, Florence, OR 97439
Organization:	Lane County Shops

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 Log Files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - SPRA

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	SPRA
Location:	SPRA - Spray
PID:	290

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 49' 36.07400”N
Longitude:	119° 46' 34.63987”W
Ellip. Hgt.:	567.239m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	OR 19 MP 93.7 Spray, OR 97874
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 Log Files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ONTO

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	ONTO
Location:	ONTO - Ontario
PID:	241

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 01' 23.43463" N
Longitude:	116° 56' 16.64526" W
Ellip. Hgt.:	646.601m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	186 East Ln. Ontario, OR
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	GR10
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - HRPR

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	HRPR
Location:	HRPR - Harper
PID:	242

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	43° 51' 57.12079" N
Longitude:	117° 36' 28.54775" W
Ellip. Hgt.:	761.422m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	2987 Harper/Westfall Road, Harper, OR 97906
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	Trimble / NetR9
Antenna:	AR25, Rev. 4 (LEIAR25.R4 LEIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - RDL2

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	RDL2
Location:	RDL2 - Riddle
PID:	247

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 57' 16.04032" N
Longitude:	123° 21' 43.92210" W
Ellip. Hgt.:	199.188m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	463 Park Street, Riddle, OR 97469
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Trimble
Receiver Model:	NetR9
Antenna:	Zephyr 3 Geodetic (TRM 115000.00 None)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - BRNT

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	BRNT
Location:	BRNT - Burnt River School
PID:	222

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 26' 24.76978" N
Longitude:	118° 11' 28.69116" W
Ellip. Hgt.:	1213.197m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	201 S 1st Avenue, Utility Oregon 97884
Organization:	Burnt River School District

Equipment Specifications
Manufacturer:	Leica Geosystems
Receiver Model:	Trimble / NetR9
Antenna:	LEIAR25.R4 (LEIAR25.24 LEIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 Log Files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - WDBN

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	WDBN
Location:	WDBN - Woodburn
PID:	233

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	45° 10' 15.09621" N
Longitude:	122° 52' 12.13029" W
Ellip. Hgt.:	40.178m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Marion Co. Maintenance Yard, Ralph LN. NE, Woodburn, OR 97071
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 Log Files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - PCS2

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	PCS2
Location:	PCS2 - Polk County Surveyors Office
PID:	240

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 55’ 08.66700" N
Longitude:	123° 19' 40.16365" W
Ellip. Hgt.:	95.817m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	Polk County Surveyors Office, 820 SW Ash, Dallas, OR 97338
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	Trimble Zephyr Geodetic 2 TRM 57971.00 NONE
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - STAY

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	STAY
Location:	STAY - Stayton
PID:

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 49' 50.53244”N
Longitude:	122° 49’15.03359”W
Ellip. Hgt.:	111.267m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	11656 Sublimity Road SE, Sublimity, OR 97385 (Stayton DMV)
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	Septentrio PolaRx5
Antenna:	Septentrio B3/E6 with Spike Radome (SEPCHOKE_B3E6 SPKE)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - ADEL

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	ADEL
Location:	ADEL - Adel
PID:	206

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	42° 10' 35.41963"N
Longitude:	119° 53' 45.06274"W
Ellip. Hgt.:	1386.121m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	20958 Hwy 140 Adel, OR 97620
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	Leica AR25.R4 (LEIAR25.R4 LEIT)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002

Station - SALM

Looking North

Looking South

Looking West

Looking East

Station Information
Site ID:	SALM
Location:	SALM - Salem
PID:	238

Position at Antenna Reference Point
Antenna Ref Point: NAD83 (2011) epoch 2010.00 MYCS3
Latitude:	44° 55' 40.44626"N
Longitude:	123° 00' 23.49431"W
Ellip. Hgt.:	44.756m
Constellations Tracked:	GPS, GLONASS & Galileo
Location Address:	455 Airport Road SE, Building M Salem, Oregon 97301
Organization:	Oregon Department of Transportation

Equipment Specifications
Manufacturer:	Septentrio
Receiver Model:	PolaRx5
Antenna:	Leica AR20 (LEIAR20 LEIM)
Elevation Mask:	0 Degrees

File Logging
File Type:	RINEX3x
Logging Interval:	1 Second
Operation Time:	24x7 log files
Rollover:	Hourly

Important Links
Site Log
RINEX Data
Alerts/Advisories
Superseded coordinates NAD83 (CORS96) epoch 2002
