DOGAMI leads the Oregon Lidar Consortium, which was created in 2007 with the goal of providing high-quality lidar data coverage for the entire state. An initial $2 million seed capital investment by the Oregon Legislature has since been leveraged into more than $19 million of lidar acquisition.
Lidar Projects

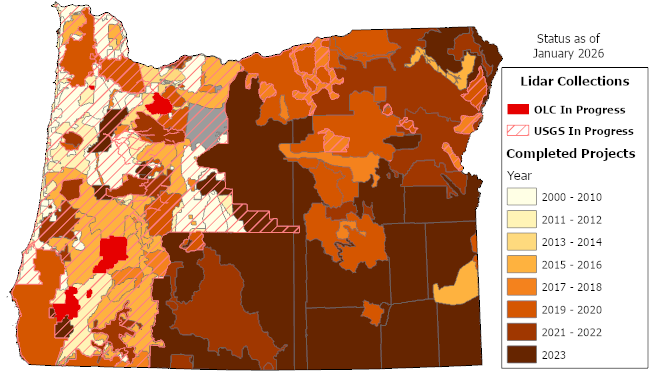

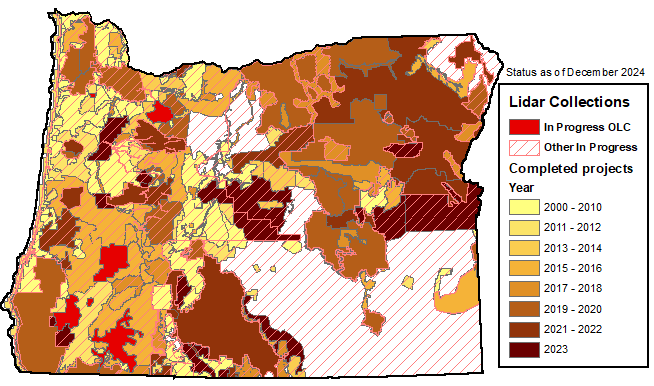

Since 2008, DOGAMI has ordered 72 lidar flights, supported by funding from more than 80 partners. High-resolution lidar data has been acquired for almost 46,886 square miles in Oregon—approximately 48 percent of the state and about 98 percent of Oregon’s populated areas.
Projects start with a partner interested in funding a specific area, and DOGAMI then works to enlarge that area by finding additional partners and adding consortium funds to create contiguous blocks of lidar collection.
Interested in partnering with the OLC to collect lidar? Contact us
Lidar in Action: Portland Metro Area Project. A 2014 $951,000 project collected 976 square miles of lidar data and orthophotos in the Portland area. Ordering individual flights would have cost nearly $6 million, according to calculations by project partner Metro. The more than 30 partners – including cities, counties, transportation agencies and the U.S. Geological Survey – have access to all the data. Partners are putting the lidar to many uses, from helping 9-1-1 dispatchers have up-to-date information for first responders to inventorying buildings to surveying urban tree canopy.
How Lidar is Collected
Airborne lidar uses a laser range finder mounted in a precisely navigated aircraft to scan the earth's surface at very high rates and collect very dense clouds of X-Y-Z coordinates. OLC projects are collected by Quantum Spatial, Inc. of Corvallis, Ore.
Amendment 8 to Agency-Specific Price Agreement 7525 provides detailed technical specifications and information on optional lidar services.
Lidar Pricing (PDF).
Technical Specifications
DOGAMI requires aggregate design multi-swath density of at least 8 pulses per square meter. The higher-than-typical density is absolutely necessary to get accurate bare earth coverage in a state that’s as forested as Oregon. The Agency also has a four-point quality control program in place that stringently reviews specifications for data completeness, swath to swath data consistency, digital elevation model requirements, and absolute accuracy of bare earth DEMs. Current technical specifications include:
Acquisition |
Value |
On-ground Spot Diameter | 15 cm - 40 cm measured at 1/e. (note 1) |
Number of Returns per Laser Puls | e ≥ 4 |
Intensity Record Range | 16 Bits |
Laser Scan Angle | ≤ +/- 15 degrees (note 2) |
Planned Survey Sidelap | ≥ 50% Sidelap of adjacent swath (note 3) |
Aggregate Pulse Density | ≥ 8 (note 4) |
Point Dilution of Precision (PDOP) | ≤ 3.0 |
Satellites in View | ≥ 6 |
GPS Stationary Reference Receiver | ≥ 2 receivers, each at least 2 hours long |
GPS Stationary Reference Receiver Sample Rate | ≥ 1 hertz (Hz) |
Aircraft GPS Sample Rate | ≥ 2 hertz (Hz) |
Differential GPS baseline distance | ≤ 30 km |
Ground Control Point (GCP)⁵ [note 5] Accuracy | ≤ 1.5 cm RMSE (note 6) |
Data Quality Value |
Value |
Single Swath Vertical Departure from Planarity | ≤ 5 cm RMSE per 100 m² |
Swath to Swath Reproducibility | ≤ 10 cm RMSE |
Fundamental Vertical Accuracy of Lidar Ground Points | ≤ 9.25 cm RMSE |
Absolute Accuracy of Digital Elevation Models | ≤ 9.25 cm RMSE |
Data Coverage | No voids |
Swath Overlap | ≤ 10% no-overlap area per project area |
DEM and DSM Surface Raster | no voids or artifacts (note 7) |
Aggregate First Return Point Density | ≥ 8 pulse per square meter |
Notes: |
1 – 1/e is defined as the diameter at which the beam irradiance (intensity) has fallen to 36.5 percent of its peak value
2 – Laser scan angle cannot exceed 30 degrees overall 3 – Survey must be designed for 100% double coverage 4 – pertains to the area of each swath with a scan angle between 2 and 12 degrees left and right from nadir 5 – GCPs will be sued for survey calibration and assessment of absolute vertical accuracy 6 – Root Mean Square Error 7 – Determined by DOGAMI and lidar vendor |
Project Reports
-
Data survey reports are provided by the vendor and generally contain a project overview as well as aerial acquisition, ground survey, accuracy, and density information.
-
Data acceptance reports contain a description of the project area, data completeness and control checks, quality consistency results, and absolute accuracy analysis.
These reports are also linked from project area layer popups in the
data viewer
Notes: Some report PDF file sizes are very large.
Program | Project | Year | Survey Report | Accept. Report | Dates Flown |
---|
OLC | Morrow County 3DEP | 2018 |
Survey | -- | Oct 3 - Nov 15 2018 |
OLC | Santiam | 2018 |
Survey | -- | Aug 3 2018 |
OLC | Harney 3DEP | 2018 |
Survey | -- | Aug 3 2018 |
University of Oregon | Eagle Creek Fire Area | 2018 |
Survey | -- | May 3-6, 2018 |
OLC | Baker County | 2018 |
Survey | -- | Sep 26-30 2017 |
OLC | Silver Creek | 2017 |
Survey | -- | Aug 27 - Sep 11 2017 |
USDA Forest Service | DESPCF, MALCRW, UMPTLR, WILWIL | 2017 | -- | -- | July 11-20 2017 |
OLC | Big Windy | 2017 |
Survey | -- | Jun 22-26 2017 |
OLC | Siskiyou | 2017 |
Survey | -- | Jun 18-21 2017 |
OLC | John Day | 2017 |
Survey | -- | Jun 14 - Jul 9 2017 |
OLC | Grass Valley | 2017 |
Survey | -- | Apr 22 - May 4 2017 |
OLC | New River, Topobathymetric | 2017 |
Survey | -- | Apr 4, 2017 |
Puget Sound Regional Council | Walla Walla, WA | 2017 |
Survey | -- | Nov 29, 2016, Dec 2, 2016, Mar 19, 2017, Mar 21, 2017, Mar 23, 2017 |
USDA Forest Service | Fremont-Winema, Willamette, Deschutes, and Umpqua National Forests | 2016 |
Survey | -- | July 21 - Oct 9 2016 |
OLC | McKenzie River 2016 | 2016 |
Survey |
Accept. | May 28 - June 21 2016 |
OLC | Canyon Creek | 2016 |
Survey |
Accept. | June 7 - June 20 2016 |
OLC | Milton-Freewater | 2016 |
Survey |
Accept. | May 28 - June 5 2016 |
Oregon Dept. of Forestry | NW Oregon - Abiqua | 2016 |
Survey | -- | Mar 30 2016 |
Oregon Dept. of Forestry | NW Oregon - Clatsop | 2016 |
Survey | -- | Dec 31 2015 - Feb 9 2016 |
Federal Emergency Management Association | Malheur FEMA 3DEP | 2016 |
Survey | -- | 2016 |
OLC | Panther Creek 2015 | 2015 |
Survey |
Accept. | June 18 2015 |
Oregon Dept. of Forestry | NW Oregon - Columbia | 2016 |
Survey | -- | June 8-9 2015 |
Oregon Dept. of Forestry | NW Oregon - McGregor | 2016 |
Survey | -- | June 6 and 8 2015 |
Oregon Dept. of Forestry | NW Oregon - Wilkerson | 2016 |
Survey | -- | May 30, June 5-6 2015 |
Oregon Dept. of Forestry | NW Oregon - Salmonberry | 2016 |
Survey | -- | Apr 19-20 2015 |
OLC | Upper Umpqua 3DEP | 2015 |
Survey |
Accept. | Feb 4 - Nov 12 2015 |
OLC | Upper Rogue 3DEP | 2015 |
Survey |
Accept. | Mar 12 - Oct 12 2015 |
OLC | Middle Fork Willamette Bathymetric Survey | 2015 |
Survey |
Accept. | Sep 14-15 2015 |
OLC | Wasco | 2015 |
Survey |
Accept. | July 15 2014 - Aug 5 2015 |
OLC | Wallowa 3DEP | 2015 |
Survey |
Accept. | July 4-15 2015 |
OLC | Big Windy 2015 | 2015 |
Survey |
Accept. | June 6 - July 3 2015 |
OLC | Four Rivers | 2015 |
Survey |
Accept. | Oct 10 2014 - June 16 2015 |
OLC | Lane County | 2015 |
Survey |
Accept. | Sep 5 2013 - June 8 2015 |
OLC | South Fork Crooked River Bathymetric Survey | 2015 |
Survey |
Accept. | Apr 16- 17 2015 |
OLC | Lower Malheur | 2015 |
Survey |
Accept. | Mar 21 - Apr 9 2015 |
OLC | Harney Basin | 2015 |
Survey |
Accept. | Oct 15 2014 - Mar 1 2015 |
OLC | Metro | 2014 |
Survey |
Accept. | July 9 - Sep 7 2014 |
OLC | South Warner | 2014 |
Survey | -- | Aug 7-16 2014 |
OLC | Crooked Ochoco | 2014 |
Survey |
Accept. | Sep 27 2013 - June 19 2014 |
OLC | Umatilla_YST | 2013 |
Survey |
Accept. | Oct 1-8 2014 |
OLC | Big Windy 2013 | 2013 |
Survey |
Accept. | Sep 26 and Oct 23 2013 |
OLC | Clackamol | 2013 |
Survey |
Accept. | May 7 - July 20 2013 |
OLC | Scappoose | 2013 |
Survey |
Accept. | July 1 - July 2 2013 |
OLC | Ochoco West | 2013 |
Survey |
Accept. | May 20 - June 16 2013 |
OLC | West Metro | 2013 |
Survey |
Accept. | Dec 29 2012 - Jan 2 2013 |
OLC | Green Peter | 2012 |
Survey |
Accept. | Sep 21 - Nov 27 2012 |
OLC | Tillamook-Yamhill | 2012 |
Survey |
Accept. | Sep 23 - Oct 5 2012 |
OLC | Sandy River Bathymetric Survey | 2012 |
Survey |
Accept. | Sep 22 2012 |
OLC | Rogue River | 2012 |
Survey |
Accept. | Mar 8 - Aug 19 2012 |
OLC | Union Baker | 2012 |
Survey |
Accept. | Dec 8 2011 - July 2 2012 |
OLC | Keno | 2012 |
Survey |
Accept. | May 19 - June 2 2012 |
Tualatin NWR | Wapato Oregon | 2012 | -- | -- | May 15 2012 |
OLC | Central Coast | 2012 |
Survey |
Accept. | Sep 2 2011 - May 11 2012 |
OLC | Eastern Oregon Thermal Infrared Study Area | 2012 |
Survey | -- | Mar 3 - Apr 8 2012 |
Bureau of Land Management | Panther Creek | 2012 |
Survey | -- | Apr 7 2012 |
David C. Smith & US Army Corp Engineers | Fall Creek | 2012 |
Survey | -- | Jan 13 - Feb 23 2012 |
USDA Forest Service | Blue River | 2011 |
Survey | -- | Oct 27, 28 and Nov 1 2011 |
OLC | Upper Sandy River | 2011 |
Survey |
Accept. | Aug 30 - Sep 3 2011 |
OLC | Ochoco | 2011 |
Survey |
Accept. | July 8-16 2011 |
OLC | Burns | 2011 |
Survey |
Accept. | June 19-21 2011 |
US Bureau of Reclamation | Klamath BOR | 2011 |
Survey | -- | Nov 20 2010 - May 30 2011 |
OLC | Pine Creek | 2011 |
Survey |
Accept. | May 19-20 2011 |
OLC | Umatilla | 2011 |
Survey |
Accept. | Mar 12 - May 13 2011 |
OLC | Deschutes | 2011 |
Survey |
Accept. | Oct 2 2009 - May 5 2011 |
OLC | Panther Creek 2011 | 2011 |
Survey |
Accept. | Apr 17 2011 |
OLC | Eagle Point | 2011 |
Survey |
Accept. | Oct 29 - Nov 4 2010 |
OLC | CVO Newberry Study Area | 2011 |
Survey |
Accept. | July 31 - Aug 10 2010 |
David C Smith and Associates | Lake Billy Chinook | 2011 |
Survey | -- | Aug 14-15 2008 |
OLC | Klamath | 2010 |
Survey |
Accept. | Sep 14 - Oct 27 2010 |
US Army Corp Engineers | Columbia River USACE | 2010 |
Survey | -- | Nov 17 2009 - Sep 22 2010 |
OLC | Crater Lake | 2010 |
Survey |
Accept. | Aug 23 - Sep 5 2010 |
USDA Forest Service | LC West Malheur National Forest | 2010 |
Survey | -- | July 27 - Aug 19 2010 |
OLC | Newberry | 2010 |
Survey |
Accept. | May 28 - July 27 2010 |
OLC | Yambo | 2010 |
Survey |
Accept. | Apr 14 - July 14 2010 |
Oregon Dept. Parks and Recreation | Cottonwood Canyon | 2010 |
Survey | -- | May 13-15 2010 |
ORMAT | Glass_Buttes | 2010 |
Survey | -- | May 8-14 2010 |
US Bureau of Reclamation | Klamath River (Link River Dam, OR to the confluence with Elk Creek south of Happy Camp, CA) | 2010 |
Survey | -- | Feb 27 - Mar 15 2010 |
OLC | Malheur River | 2009 |
Survey |
Accept. | Nov 19 2008 - July 5 2009 |
OLC | South West Washington Coast | 2009 |
Survey |
Accept. | July 26 2009 - Oct 10 2009 |
BLM | Panther Creek | 2009 | -- | -- | Aug 17, 2009 |
Walla Walla Basin Watershed Council | Walla Walla | 2009 |
Survey | -- | Aug 17 2009 |
US Bureau of Reclamation | Grande Ronde Basin | 2009 |
Survey | -- | Aug 12-16 2009 |
OLC | North Coast | 2009 |
Survey |
Accept. | Apr 5 - Aug 9 2009 |
National Center for Airborne Lidar Mapping | Owhyee | 2009 | -- | -- | June 26 2009 |
Washington Dept. of Natural Resources | Yacolt Burn | 2009 | -- | -- | June 9 2009 |
OLC | Willamette Valley | 2009 |
Survey |
Accept. | Oct 22 2008 - June 9 2009 |
OLC | Medford - Rogue Valley | 2009 |
Survey |
Accept. | Apr 29 - May 12 2009 |
OLC | South Coast | 2009 |
Survey |
Accept. | May 3 2008 - Apr 5 2009 |
OLC and Puget Sound Lidar Consortium | Portland - Mt. Hood Study Area | 2009 |
Survey | -- | Mar 16 2007 - Apr 11 2009 |
US Geologic Survey | Umpqua River | 2008 |
Survey | -- | Apr 21 - July 13 2009 |
OLC | Ontario | 2008 |
Survey |
Accept. | Dec 3-10 2008 |
USDA Forest Service | Sandy River | 2008 |
Survey | -- | Sep 29 2008 - Oct 1 2008 |
US Bureau of Reclamation | Grande Ronde and Lemhi River Basins | 2008 |
Survey | -- | Oct 19 2007 - Sep 5 2008 |
OLC | Willamette Mission and Bowers Rock State Park | 2008 |
Survey | -- | Sep 15 - Oct 9 2008 |
OLC | Camp Creek | 2008 |
Survey |
Accept. | Aug 19-27 2008 |
USDA Forest Service | HJ Andrews & Willamette National Forest | 2008 |
Survey | -- | Aug 10-11 2008 |
Douglas County PUD | Macdonald Dunn | 2008 | -- | -- | Apr 2 2008 |
Bureau of Land Management | Yamhill County | 2007 |
Survey | -- | Sep 3 and Dec 8 2007 |
USDA Forest Service | Biscuit Fire | 2007 |
Survey | -- | Sep 19-23 2007 |
Wallowa-Whitman National Forest | Sumpter | 2007 |
Survey | -- | Sep 17 2007 |
USDA Forest Service | Damon Malheur | 2007 |
Survey | -- | Sep 15-16 2007 |
USDA Forest Service | Salmon River | 2007 |
Survey | -- | Aug 25 2007 |
Rogue Valley Council of Governments | Rogue Valley | 2007 |
Survey | -- | May 30-31 2007 |
Oregon Trout | Lower Salmon River | 2007 |
Survey | -- | May 18-19 2007 |
Oregon Trout | Still Creek | 2007 |
Survey | -- | May 18 2007 |
Oregon Dept. Parks and Recreation | Honeyman Dunes | 2007 |
Survey | -- | Mar 13 2007 |
Oregon Dept. Parks and Recreation | Silver Falls | 2007 |
Survey | -- | Mar 14 2007 |
Portland General Electric | Sand River 2006 | 2006 |
Survey | -- | Oct 22 2006 |
USDA Forest Service | Rogue River - Siskiyou National Forest | 2006 |
Survey | -- | July 1- 4 2006 |
Oregon Dept. of Environmental Quality | Yamhill River | 2005 |
Survey | -- | Oct 12 2005 |
Wetland & Watershed Assessment Group | South Slough Esturary Reserve 2005 | 2005 |
Survey | -- | Sep 6 2005 |
USDA Forest Service | Yaquina and Elk Creek Watershed | 2005 |
Survey | -- | July 13-15 2005 |
U.S. Fish and Wildlife | SF John Day River | 2005 |
Survey | -- | Mar 11 2005 |
Puget Sound Lidar Consortium | Lower Columbia 2005 | 2005 |
Survey | -- | Jan 10 - Feb 20 2005 |
Klamath Tribes | Sprague River | 2004 |
Survey | -- | Nov 2004 |
Klamath Tribes | Wood River | 2004 |
Survey | -- | Sep 26-27 2004 |
Puget Sound Lidar Consortium | Portland Hills | 2004 | -- | -- | July 2 2004 |
JALBTCX (Joint Airborne Lidar Bathymetry Technical Center of eXpertise) | Coastal Bathymetry | 2010-2011 |
Survey (metadata) | -- | June 18 2010 - June 08 2011 |
Puget Sound Lidar Consortium | Portland Pilot | 2004 | -- | -- | Mar 7 2004 |
Oregon City | Oregon City | 2004 |
Survey | -- | report dated Feb 16, 2006 |
US Geologic Survey | Deschutes River | 2002 | -- | -- | May 25 2006 |
Bureau of Land Management | Cascade Siskiyou National Monument | 2002 |
Survey | -- | June 27-29 2002 |
US Bureau of Reclamation | Umatilla River | 2000 |
Survey | -- | Oct 8 - Nov 1 2000 |
(last updated 09/08/2022)
